Removal and installation of front compartment storage box assembly

Remove

  1. Remove the left trim panel assembly of front compartment. Refer to Removal and installation of left trim panel assembly of front compartment

  2. Remove the right trim panel assembly of front compartment. Refer to Removal and installation of right trim panel assembly of front compartment

  3. Remove the grille upper cover. Refer to Removal and installation of grille upper cover assembly

  4. Remove the vent cover assembly. Refer to Removal and installation of ventilation cover assembly

  5. Remove the front compartment storage box gasket assembly. Refer to Removal and installation of front compartment storage box gasket assembly

  6. Remove the A/C intake deflector assembly. Refer to Removal and installation of A/C intake deflector assembly

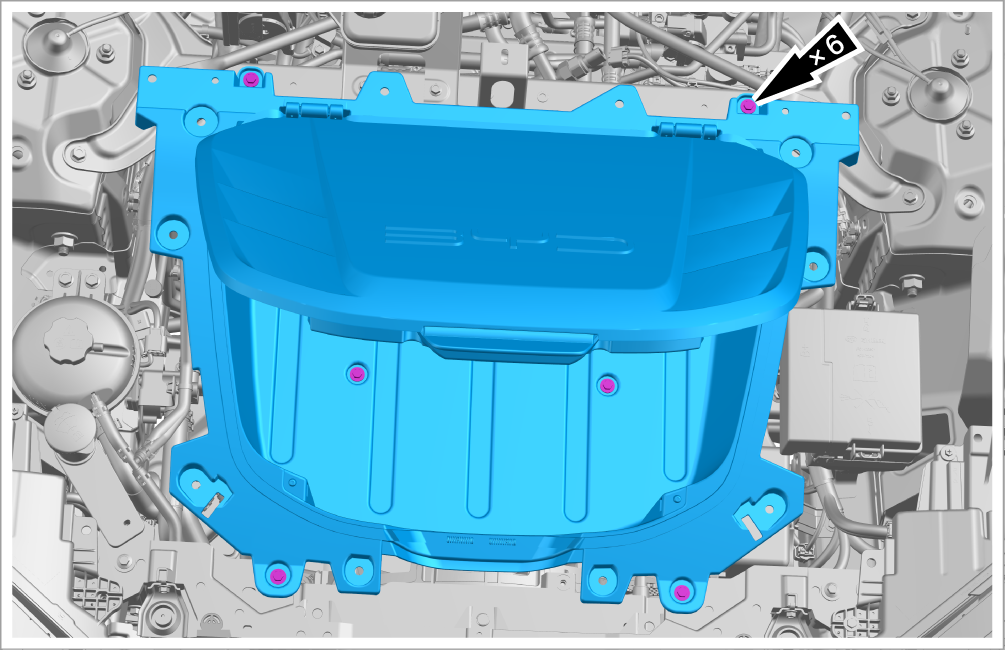

  7. Remove 6 fixing bolts and take out the front compartment storage box assembly.

    • Tightening torque: 5±1 N•m

Install

  1. Install it in the reverse order of removal.
