Removal and installation of A/C intake deflector assembly

Remove

  1. Remove the ventilation cover deflector assembly. Refer to Removal and installation of ventilation cover deflector assembly

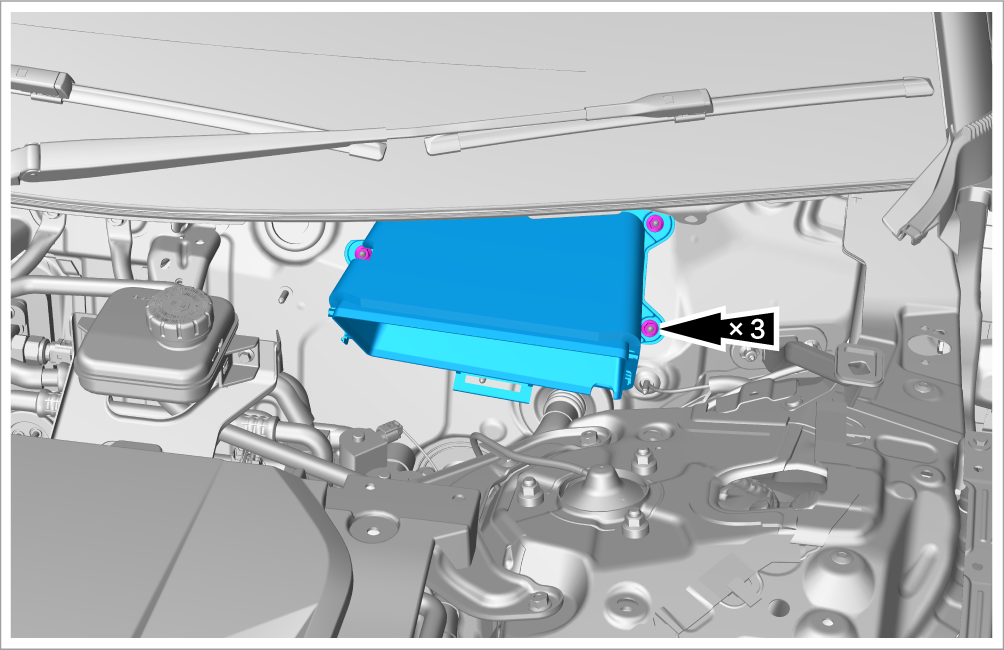

  2. Remove 3 fixing nuts and take out the A/C intake deflector assembly.

Install

  1. Install it in the reverse order of removal.
