Removal and installation of grille upper cover assembly

Remove

  1. Remove the left trim panel assembly of front compartment. Refer to Removal and installation of left trim panel assembly of front compartment

  2. Remove the right trim panel assembly of front compartment. Refer to Removal and installation of right trim panel assembly of front compartment

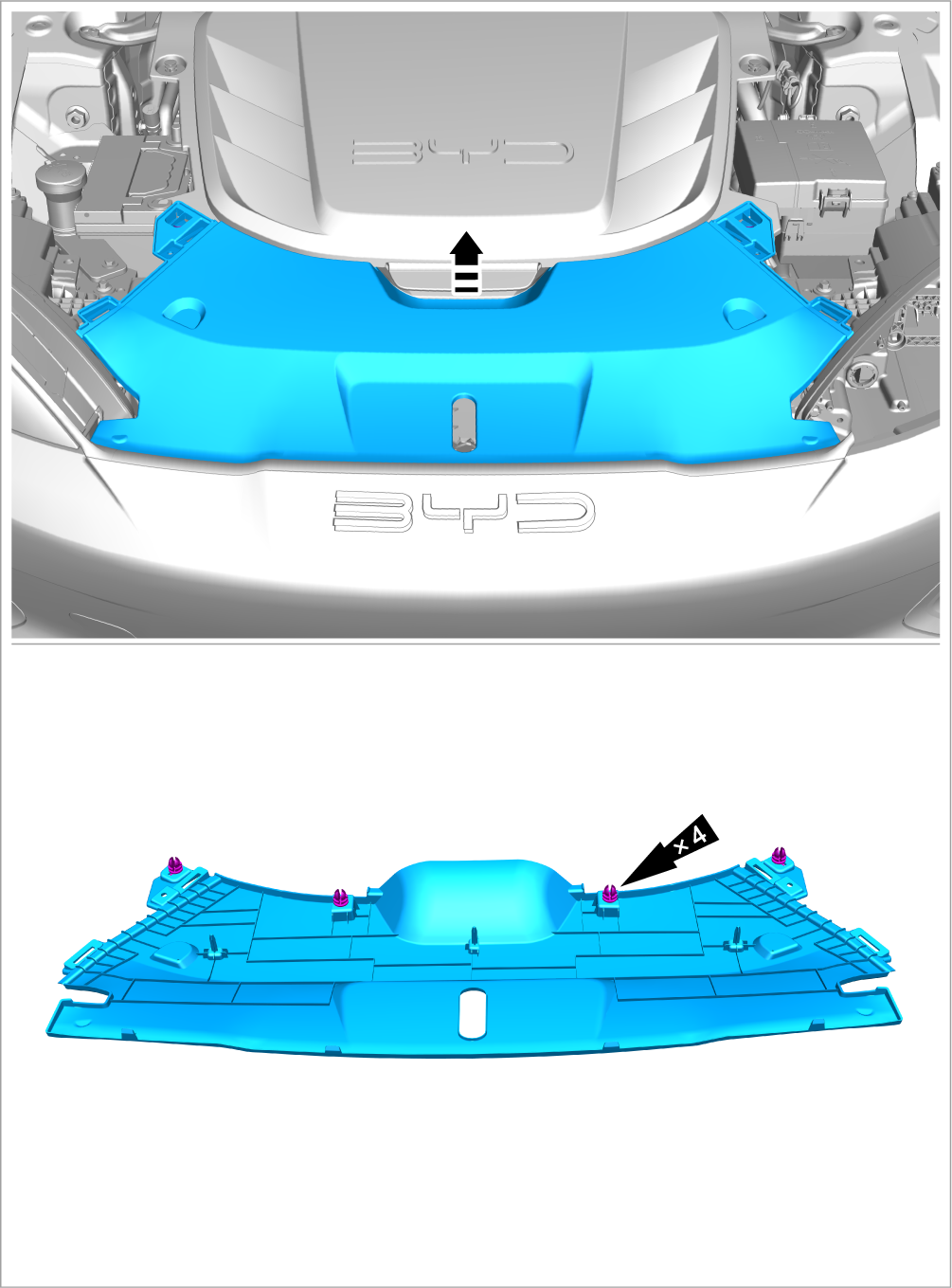

  3. Remove 4 fixing clips and take out the grille upper cover assembly.

Install

  1. Install it in the reverse order of removal.
