Removal and installation of PAD mounting base shield assembly

Remove

Caution
Be careful during removal to avoid scratching the surface material.

  1. Remove the PAD display screen. Refer to Removal and installation of PAD display screen assembly

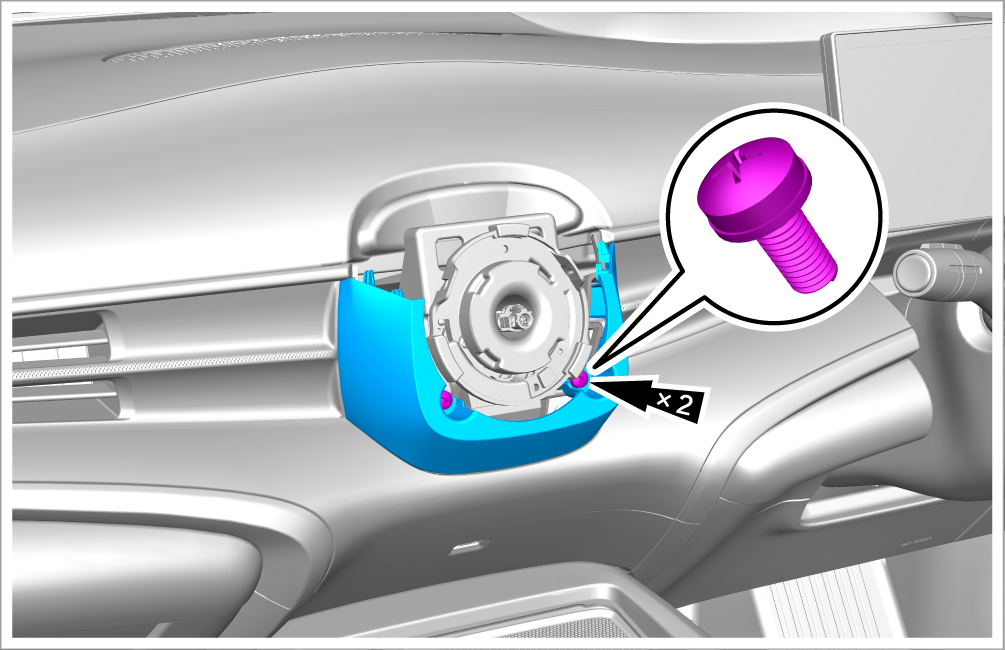

  2. Remove 2 fixing screws and take out the PAD mounting base shield assembly.

Install

  1. Install it in the reverse order of removal.
