Removal and installation of front bumper assembly

Remove 3D animation demonstration

  1. Power off the low-voltage electrical system. Refer to Power-off and power-on of low-voltage electrical system  Power-off and power-on of low-voltage electrical system

  2. Remove the grille upper cover assembly. Refer to Removal and installation of grille upper cover assembly  Removal and installation of grille upper cover assembly

  3. Remove fasteners on the left side of front bumper assembly.

    1. Remove 2 fixing clips.

    2. Remove 3 fixing screws.

  4. Remove fasteners on the right side of front bumper assembly.

    1. Remove 2 fixing clips.

    2. Remove 3 fixing screws.

  5. Remove 8 fixing bolts of the front bumper assembly.

    • Tightening torque: 5±1 N•m

  6. Remove 6 fixing bolts of the front bumper assembly.

    • Tightening torque: 3±0.5 N•m

  7. Detach the front bumper assembly.

    Caution
    Do not apply excessive force when detaching the bumper assembly to prevent damage to the connector.

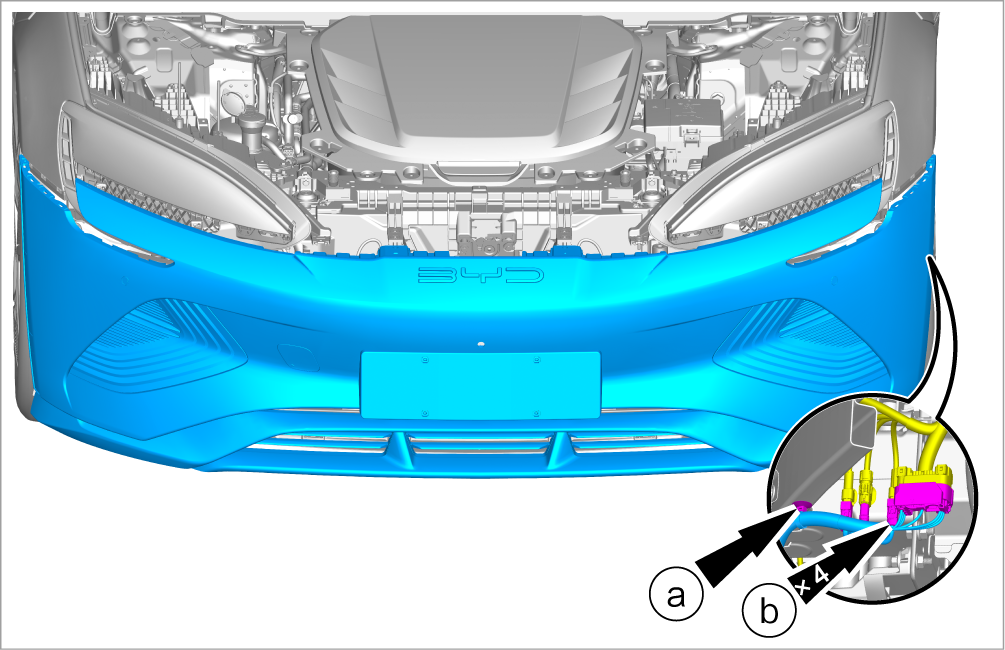

  8. Remove the front bumper assembly.

    1. Detach 1 wiring harness clip.

    2. Disconnect 4 connectors and take out the front bumper assembly.

Install

  1. Install it in the reverse order of removal.
