Removal and installation of USB charging connector

Remove

  1. Remove the rear trim panel assembly of auxiliary instrument panel. Refer to Removal and installation of rear trim panel assembly of auxiliary instrument panel

  2. Open the auxiliary instrument panel 220 V trim panel flap.

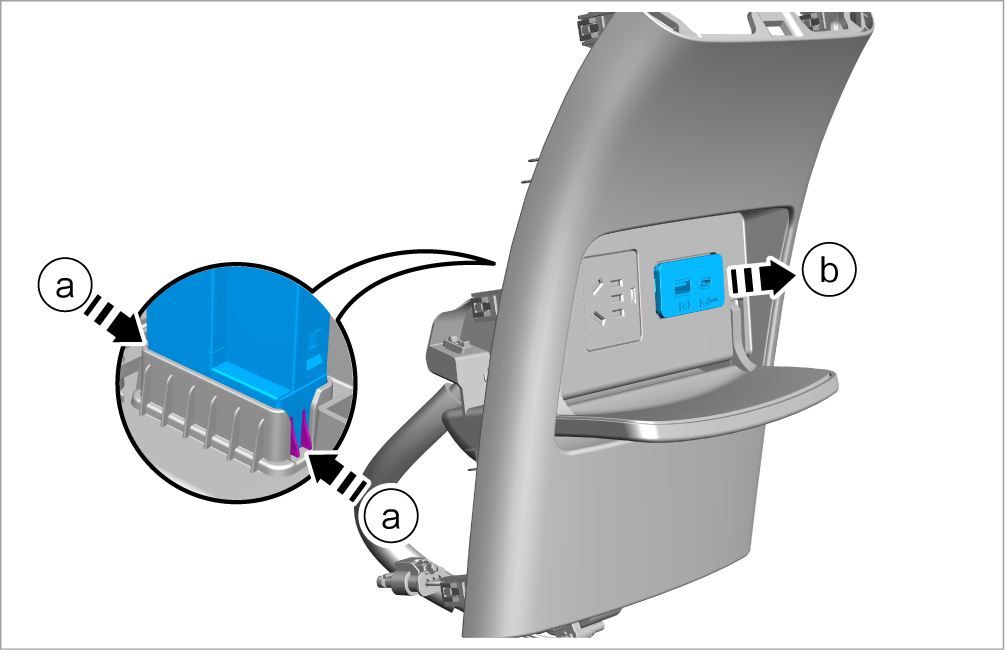

  3. Remove the USB charging connector.

    1. Press the lock catches on both sides.

    2. Take out the USB charging connector.

Install

  1. Install it in the reverse order of removal.
