Removal and installation of battery pack anti-collision bar assembly

Remove

  1. Remove the front subframe mudguard assembly. Refer to Removal and installation of front subframe mudguard assembly

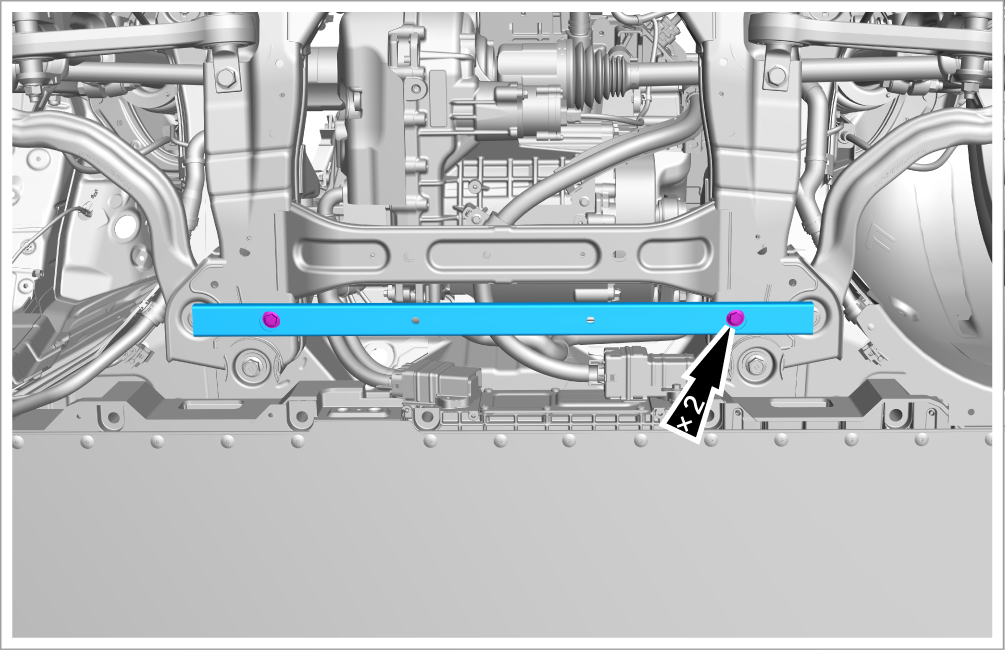

  2. Remove 2 fixing bolts and take out the battery pack anti-collision bar assembly.

    • Tightening torque: 70 N•m

Install

  1. Install it in the reverse order of removal.
