Lift the vehicle.

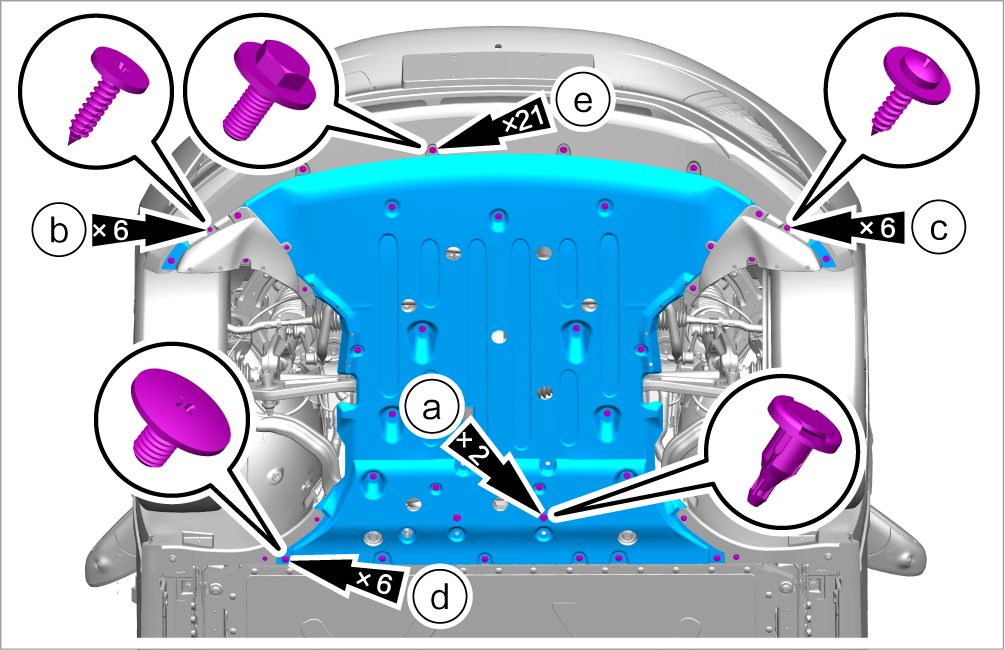

Remove the front subframe mudguard assembly.

1. Remove 2 fixing clips.

2. Remove 6 cylindrical head self-tapping screws.

3. Remove 6 pan head self-tapping screws.

4. Remove 6 large cup head self-tapping screws.

5. Remove 21 fixing bolts and take out the front subframe mudguard assembly.

   • Tightening torque: 5 N•m

Install it in the reverse order of removal.
