Removal and installation of gearshift control mechanism panel assembly

Remove

  1. Remove the gearshift control mechanism cover assembly. Refer to Removal and installation of gearshift control mechanism cover assembly

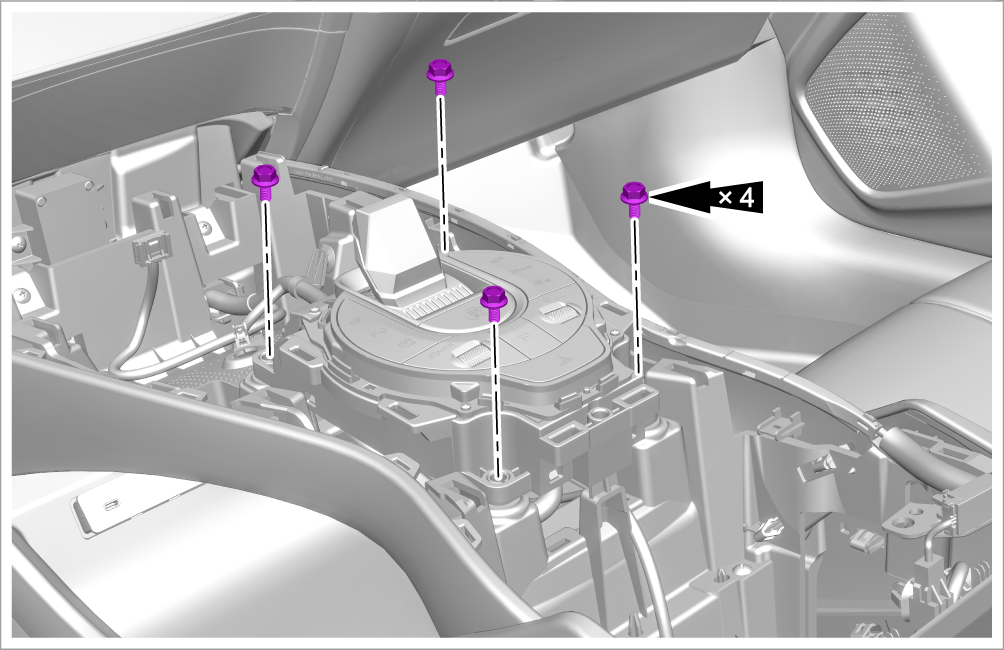

  2. Remove 4 fixing bolts from the gearshift control mechanism panel assembly.

    • Tightening torque: 10 N•m

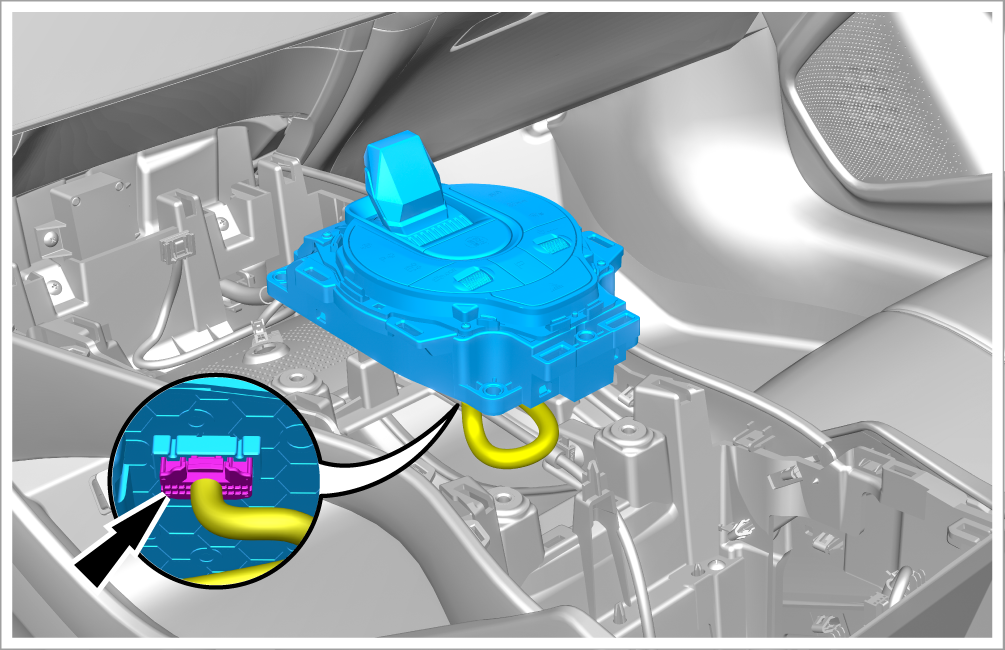

  3. Disconnect 1 connector and take out the gearshift control mechanism panel assembly.

Install

  1. Install it in the reverse order of removal.
