Removal and installation of rear A/C face level air duct assembly

Remove

  1. Remove the rear trim panel assembly of auxiliary instrument panel. Refer to Removal and installation of rear trim panel assembly of auxiliary instrument panel

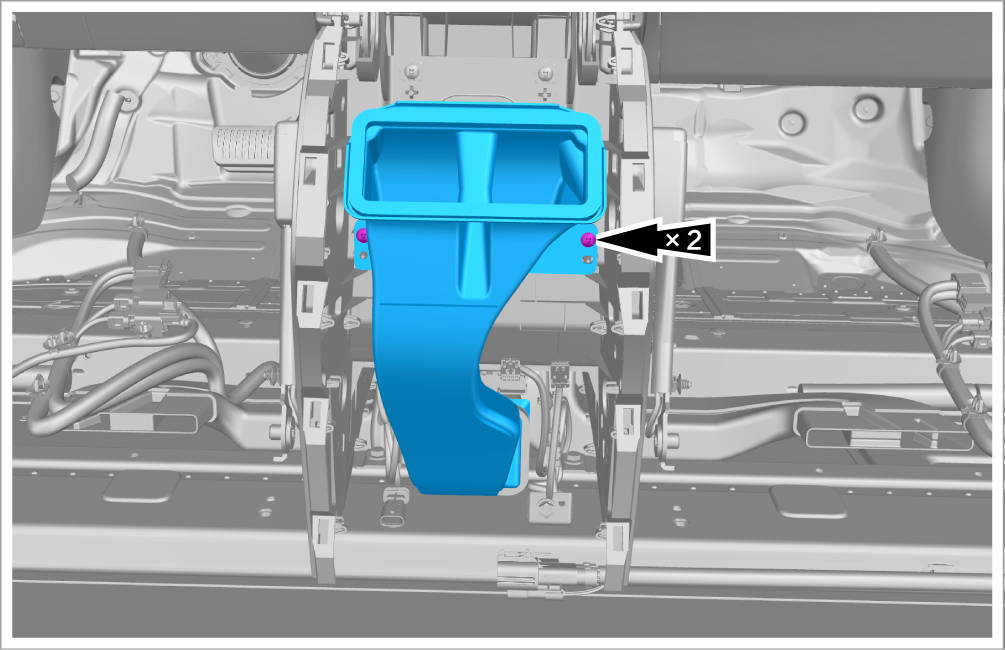

  2. Remove 2 fixing screws and take out the rear A/C face level air duct assembly.

Install

  1. Install it in the reverse order of removal.
