Removal and installation of front right shield assembly of auxiliary instrument panel

Remove

Caution
Be careful during removal to avoid scratching the surface material.

  1. Remove the lower right sound insulation board assembly of instrument panel. Refer to Removal and installation of lower right sound insulation board assembly of instrument panel

  2. Remove the front right shield assembly of auxiliary instrument panel.

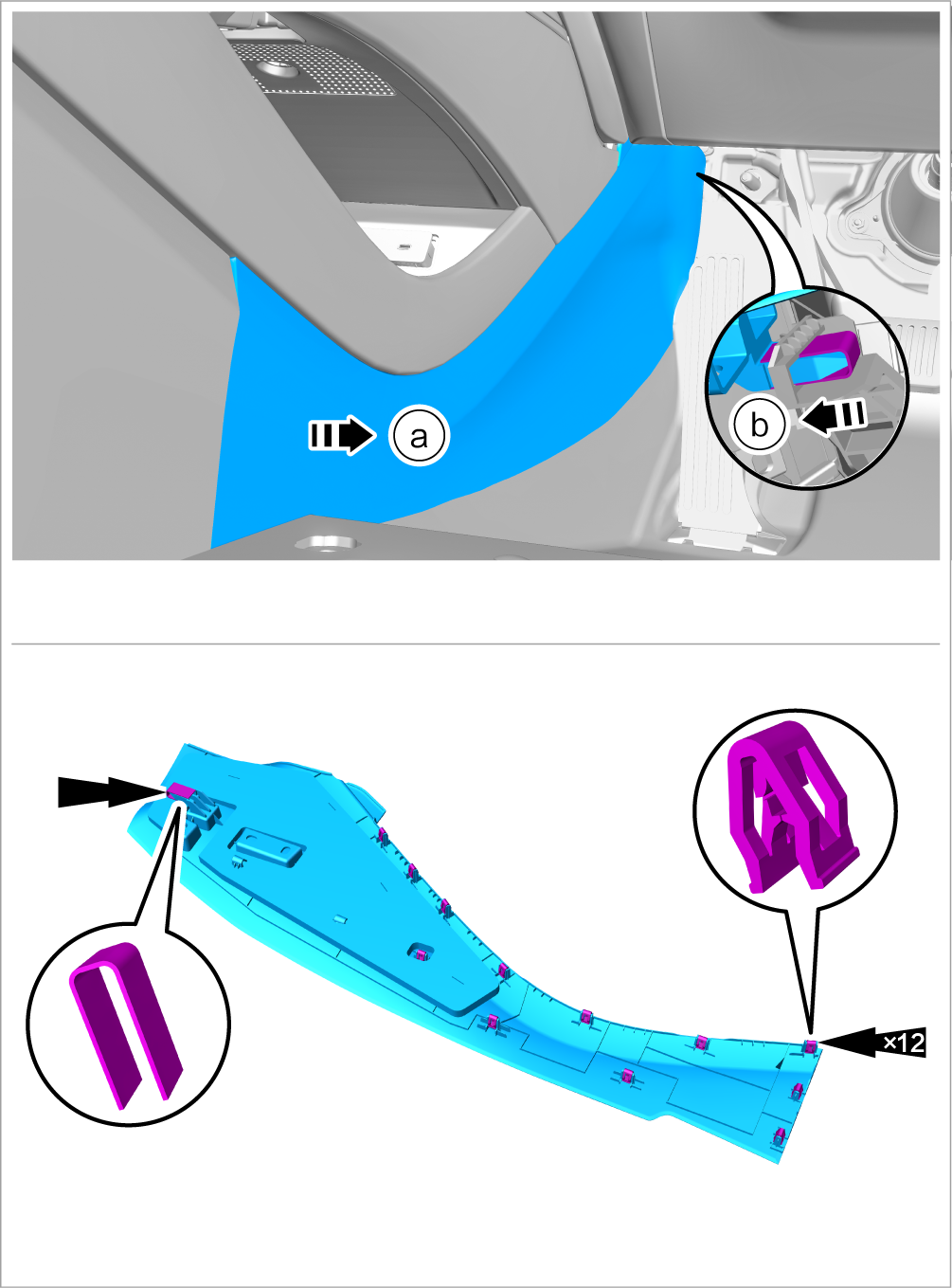

    1. Carefully pry out the front right shield assembly of auxiliary instrument panel with a plastic pry plate.

    2. Detach it from the auxiliary instrument panel body assembly, and take out the fight front shield assembly of auxiliary instrument panel.

    Caution
    Before removal, move the driver's seat assembly to the rearmost position.

Install

Caution
Before installation, check for any missing or damaged clips. If any, install a new clip.

  1. Install it in the reverse order of removal.
