Removal and installation of right shield assembly of instrument panel

Remove

Caution
Be careful during removal to avoid scratching the surface material.

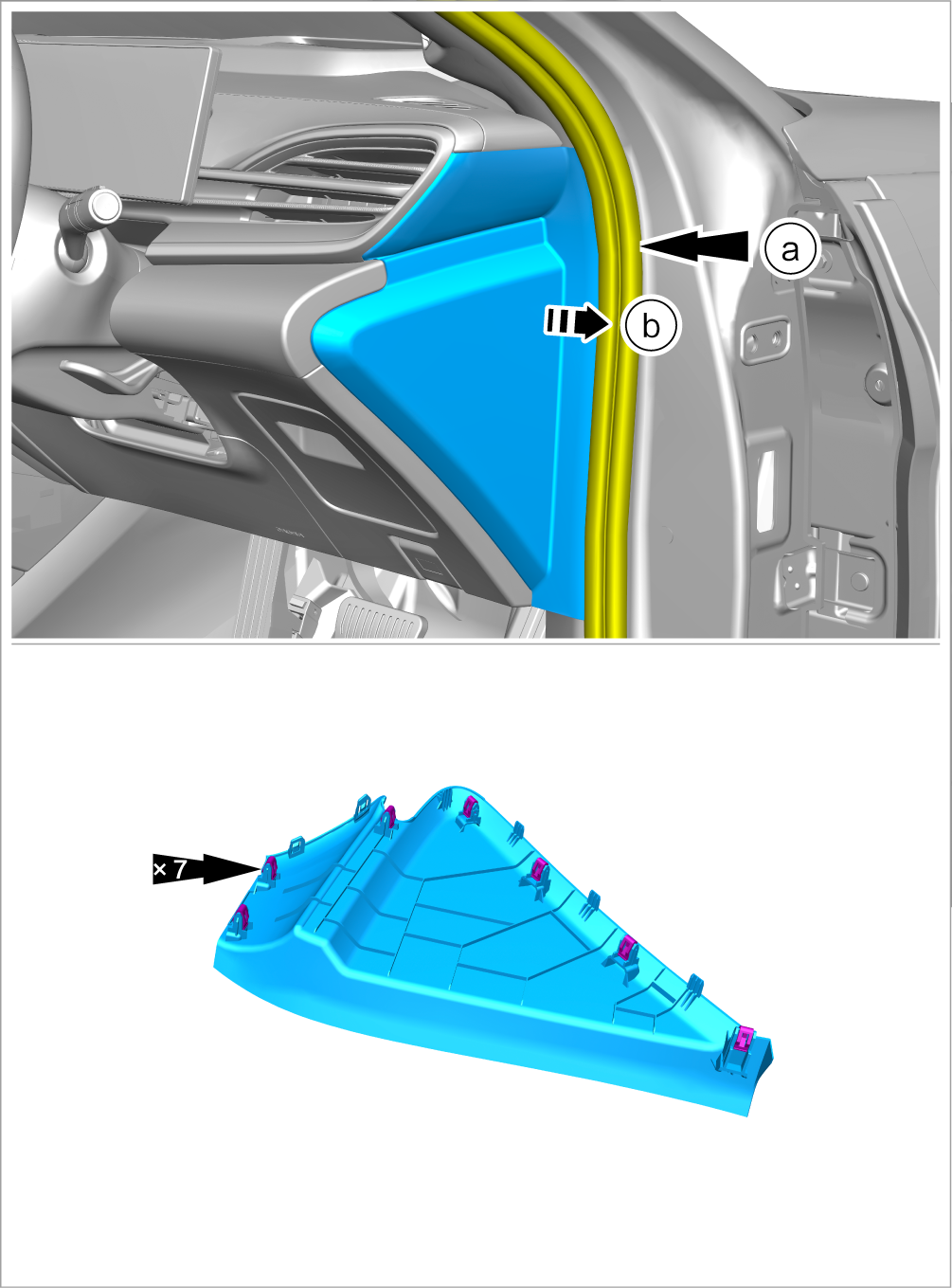

  1. Remove the right shield assembly of instrument panel.

    1. Detach the front right door frame sealing strip partially.

    2. Carefully pry out the right shield assembly of instrument panel with a plastic pry plate.

Install

Caution
Before installation, check for any missing or damaged clips. If any, install a new clip.

  1. Install it in the reverse order of removal.
