Removal and installation of center speaker

Remove

  1. Power off the low-voltage electrical system. Refer to Power-off and power-on of low-voltage electrical system

  2. Remove the center speaker cover assembly. Refer to Removal and installation of center speaker cover assembly

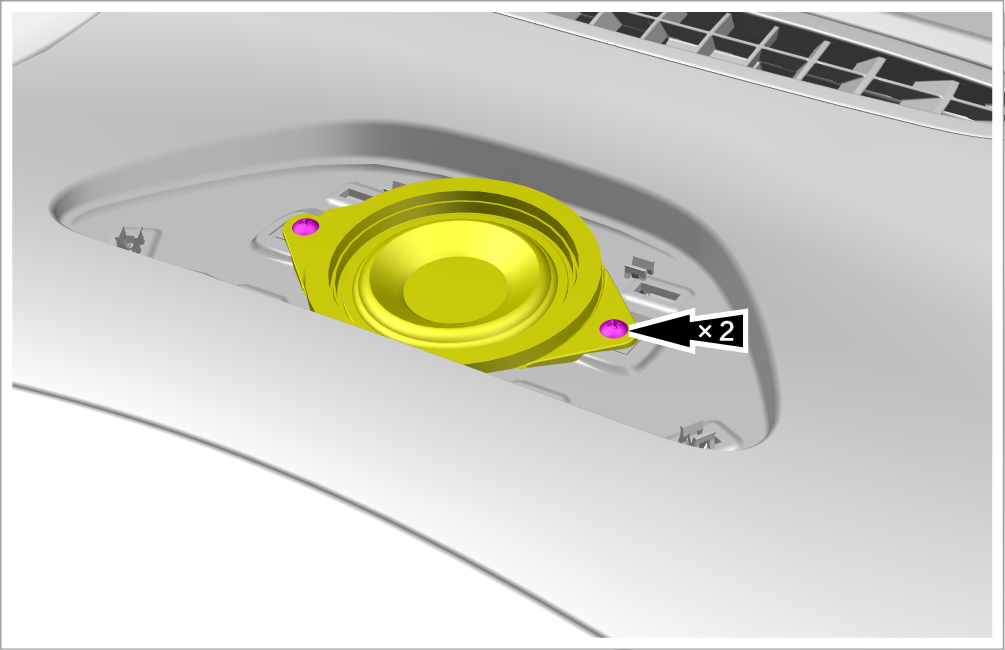

  3. Remove 2 fixing screws and take out the center speaker.

    Reminder
    Avoid applying excessive force to prevent damage to connectors.

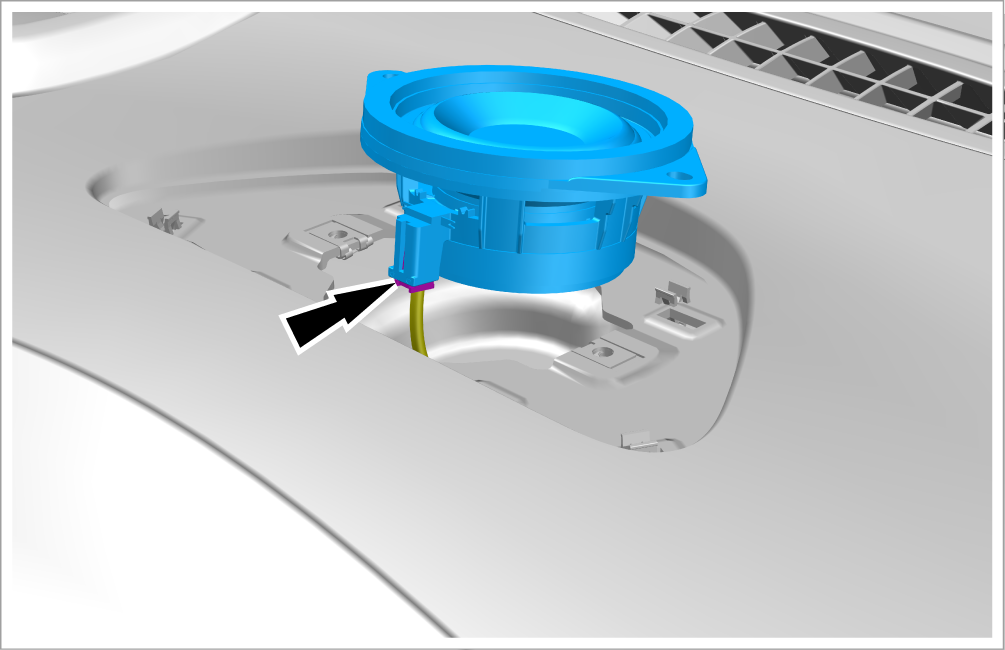

  4. Disconnect 1 connector and take out the center speaker.

Install

  1. Install it in the reverse order of removal.
