Removal and installation of rear subframe mudguard assembly

Remove

  1. Lift the vehicle.

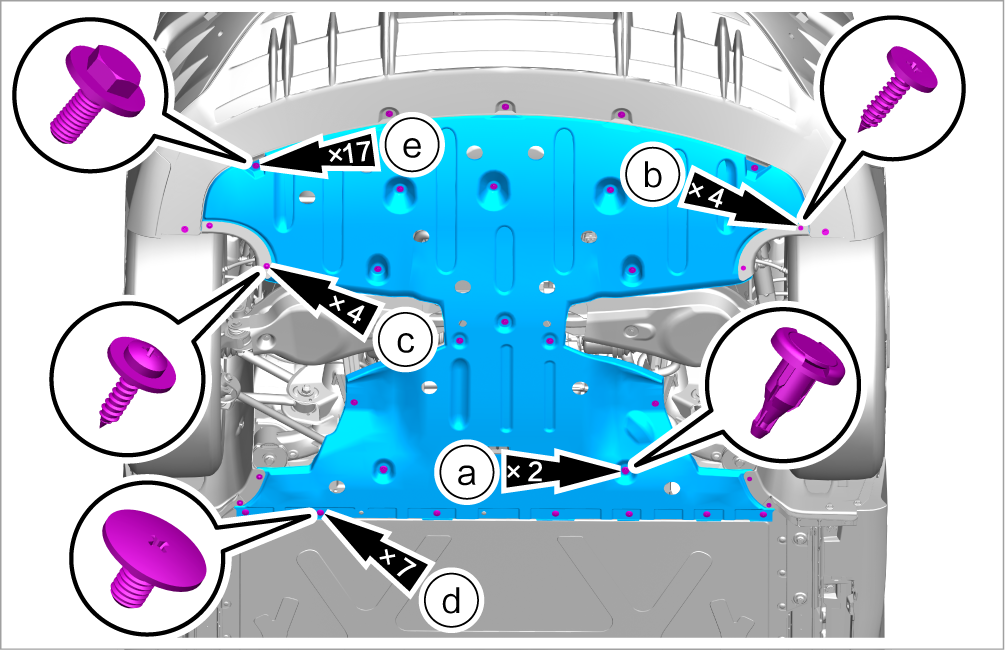

  2. Remove the rear subframe mudguard assembly.

    1. Remove 2 fixing clips.

    2. Remove 4 cylindrical head self-tapping screws.

    3. Remove 4 pan head self-tapping screws.

    4. Remove 7 large cup head self-tapping screws.

    5. Remove 17 fixing bolts and take out the rear subframe mudguard assembly.

      • Tightening torque: 5 N•m

Install

  1. Install it in the reverse order of removal.
