Removal and installation of front passenger airbag module

Removal

Warning

  • The supplemental restraint system (SRS) can still work for a period of time after power supply is disconnected. Wait for at least 3 min before disassembling or removing any SRS components.

  • Make sure that the electrical system of the vehicle is completely powered off, without any connection to other power supplies.

  • The following procedure specifies the key maintenance steps required for correct operation of SRS components in case of a collision. Please carefully follow all precautions and steps. Failure to follow the step-by-step instructions may lead to incorrect operation of SRS and increase the risk of serious personal injury or death during collision.

  1. Remove the instrument panel upper body assembly. Refer to Removal and installation of instrument panel upper body assembly

  2. Remove the front passenger airbag module.

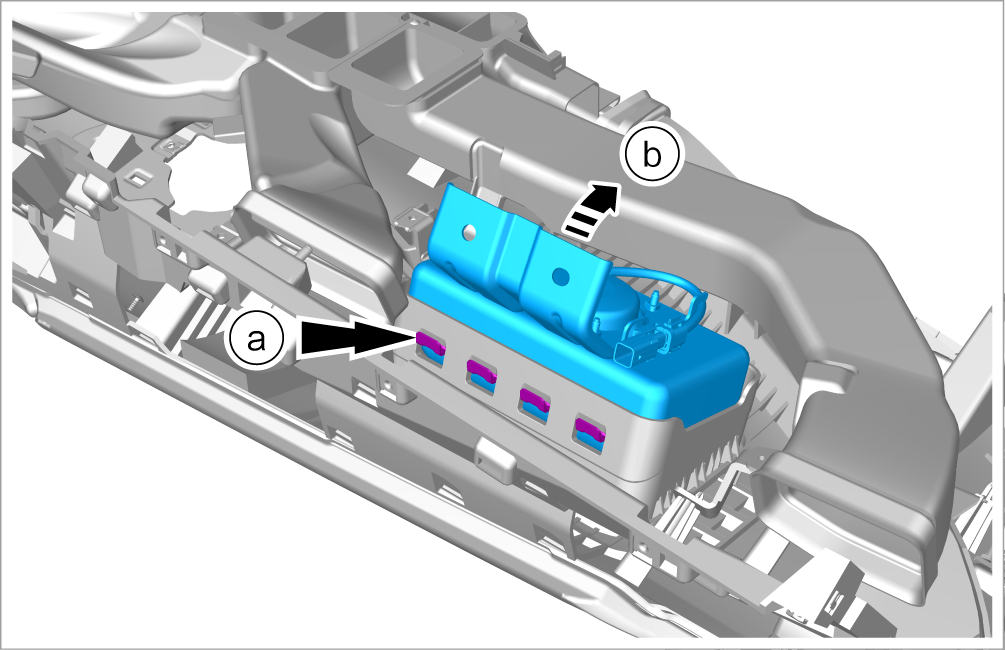

    1. Detach the hook on one side.

    2. Take out the front passenger airbag module.

Installation

Warning

  • Please observe the following precautions when installing the airbag; otherwise, personal injury may be caused.

  • Do not attempt to disassemble or maintain the airbag. If any abnormalities occur, please replace the airbag with a new one.

  1. Install it in the reverse order of removal.
