Removal and installation of shutter switch

Remove

  1. Power off the low-voltage electrical system. Refer to Power-off and power-on of low-voltage electrical system

  2. Remove the glove box assembly. Refer to Removal and installation of glove box assembly

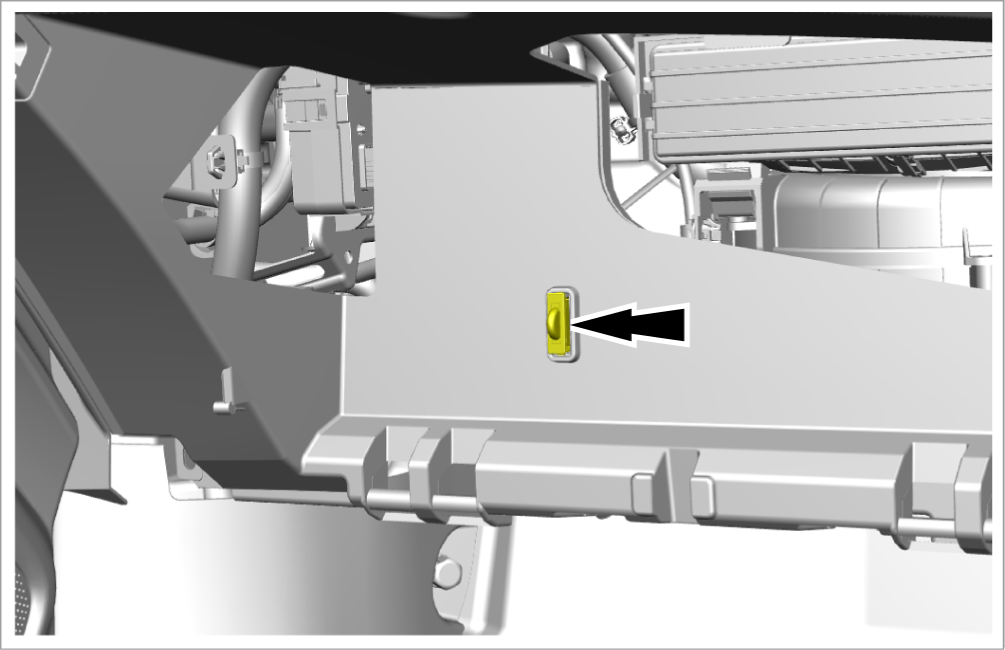

  3. Carefully pry out the shutter switch with a miniature straight screwdriver.

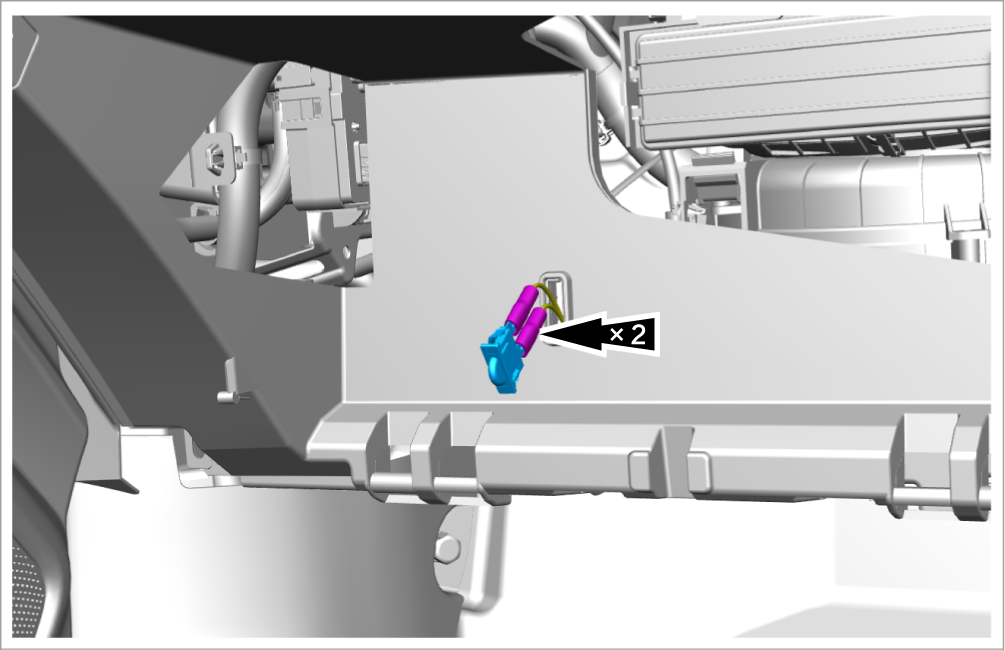

  4. Disconnect 2 connectors and take out the shutter switch.

Install

  1. Install it in the reverse order of removal.
